Pro Connect Adapter Kits

Pro Pro Pro Pro Pro Pro Pro Pro Pro Pro Pro Pro

Jagwire's all-new Pro Connect Adapter Kits maximize compatibility while offering simpler installation. There’s no need for additional specialized fittings – these kits work with any Jagwire hose! Available kits offer compatibility with Shimano®, SRAM®, Avid®, Magura®, Hayes®, Tektro®, or TRP® brakes. Simply match the kit for your brake system with a Jagwire Pro Connect Hose in the color of your choice for enough hose and fittings for both a front and rear brake!

Pro Connect Adapter Kits are designed to work with Jagwire Pro Connect Hydraulic Hose

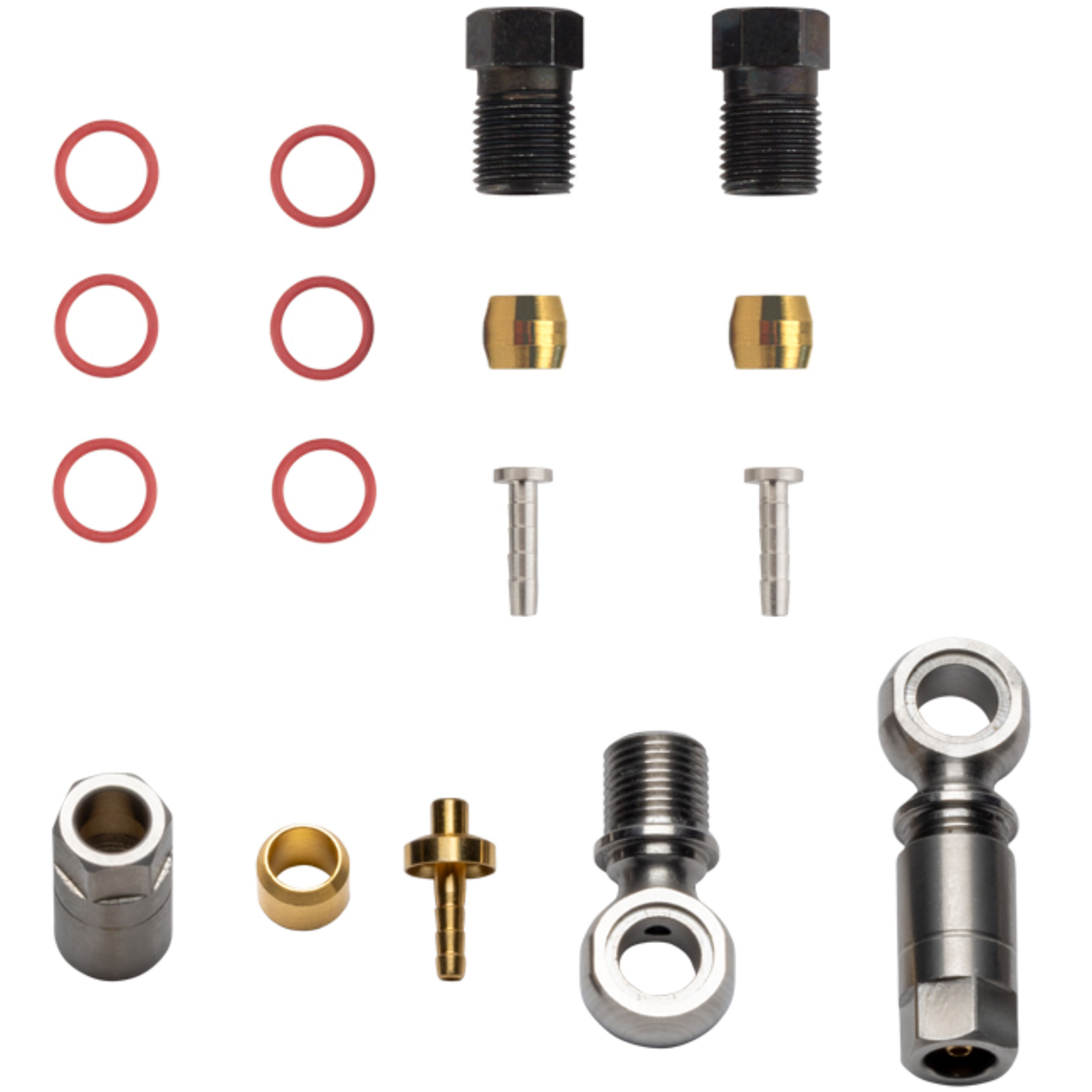

Stainless steel banjo fittings include necessary components to install on a bare cut hose
Because the fittings are separate from the hose, dealers can offer more color choices without adding inventory
Each kit includes lever and caliper fittings for one bicycle, or two brakes

Specifications

Current article

EAN	4715910043455
Manufacturer Part No.	HFA320
Performance Level	Pro
Compatibility	SHIMANO XTR M9120, M9020, M9000, M988, M987, M985, Saint M820, Deore XT M8120, M8100, M8020, M8000, M785, T785, SLX M7120, M7100, M7000, M675, M666; ZEE M640, Alfine S700

Variants

Article Number (EAN)	Manufacturer Part No.	Compatibility
4715910043400	HFA220	SRAM® G2 Ultimate, G2 RSC; Guide Ultimate, Guide RSC (B1), Guide RS (B1), Guide R (B1); Avid® XX World Cup 2010–2011, XX™ 2010–2011; Avid® Juicy Ultimate, Juicy Carbon, Juicy Seven, Juicy Five
4715910043417	HFA221	SRAM® Level Ultimate (B1), Level TLM (B1), Level T, Level; Guide RE; Avid® Code, Code 5, Elixir 1, 3; Juicy 3; DB3, DB1
4715910043424	HFA222	SRAM Level Ultimate (A1), TLM (A1), Code RSC (A1), Code R (B1)
4715910043431	HFA223	SRAM Red eTap AXS HRD (2019+), Force eTap AXS HRD, Rival eTap AXS HRD
4715910043448	HFA224	SRAM MAVEN
4715910043455	HFA320	SHIMANO XTR M9120, M9020, M9000, M988, M987, M985, Saint M820, Deore XT M8120, M8100, M8020, M8000, M785, T785, SLX M7120, M7100, M7000, M675, M666; ZEE M640, Alfine S700
4715910043462	HFA322	SHIMANO XTR M975, Deore XT M775, SLX M665, Deore LX T665, M585, Hone M601, Deore T615, M595, M535, M525, Alfine S7000, S500, S501; Metrea U5000, Alivio M4050, Acera M3050, Non-Series T605, MT500, MT400, MT200, M575, M486, M485, M447, M446, M445, M395, M365, M355, M315, UR300
4715910043479	HFA323	SHIMANO Dura Ace R9120, R9170, R9180, Ultegra R8020, R8070, 105 R7070, Tiagra 4770, GRX RX810, RX400
4715910043486	HFA410	MAGURA MT Trail SL, MT Trail Sport, MT8 SL, MT8 Pro, MT8, MT8 SL Flatmount, MT7 Pro, MT7, MT6, MT5, MT5e, MT4, MT4 Flatmount, MT4e
4715910043493	HFA610	HAYES Dominion A4, Dominion A2, Prime Expert, Prime Pro, Prime Comp, Stroker Trail, Stroker Carbon, Stroker Ace, Stroker Gram
4715910043509	HFA808	TRP C1.8, C2.3, Quadiem, Slate EVO
4715910043516	HFA809	TRP Hylex (EZ-Plug), TT-Hydraulic HD-T910/912
